Automatic Pressurizing Pump 120W 1 Service EVANS

IMPORTANT - READ BEFORE INSTALLING
To avoid failures, returns or loss of warranty:

-Install indoors. It must not be exposed to sun or rain.
-Do not operate dry. There must be constant water flow.
-Mandatory horizontal connection. The motor shaft must be completely horizontal.
-Regular screen cleaning. Avoids blockages and maintains efficiency.
-Not suitable for pumping flammable, corrosive liquids or those with solid residues.
-Electrical connection only by qualified personnel.

Please read the included installation manual before using the product. Incorrect installation can cause damage not covered by warranty.

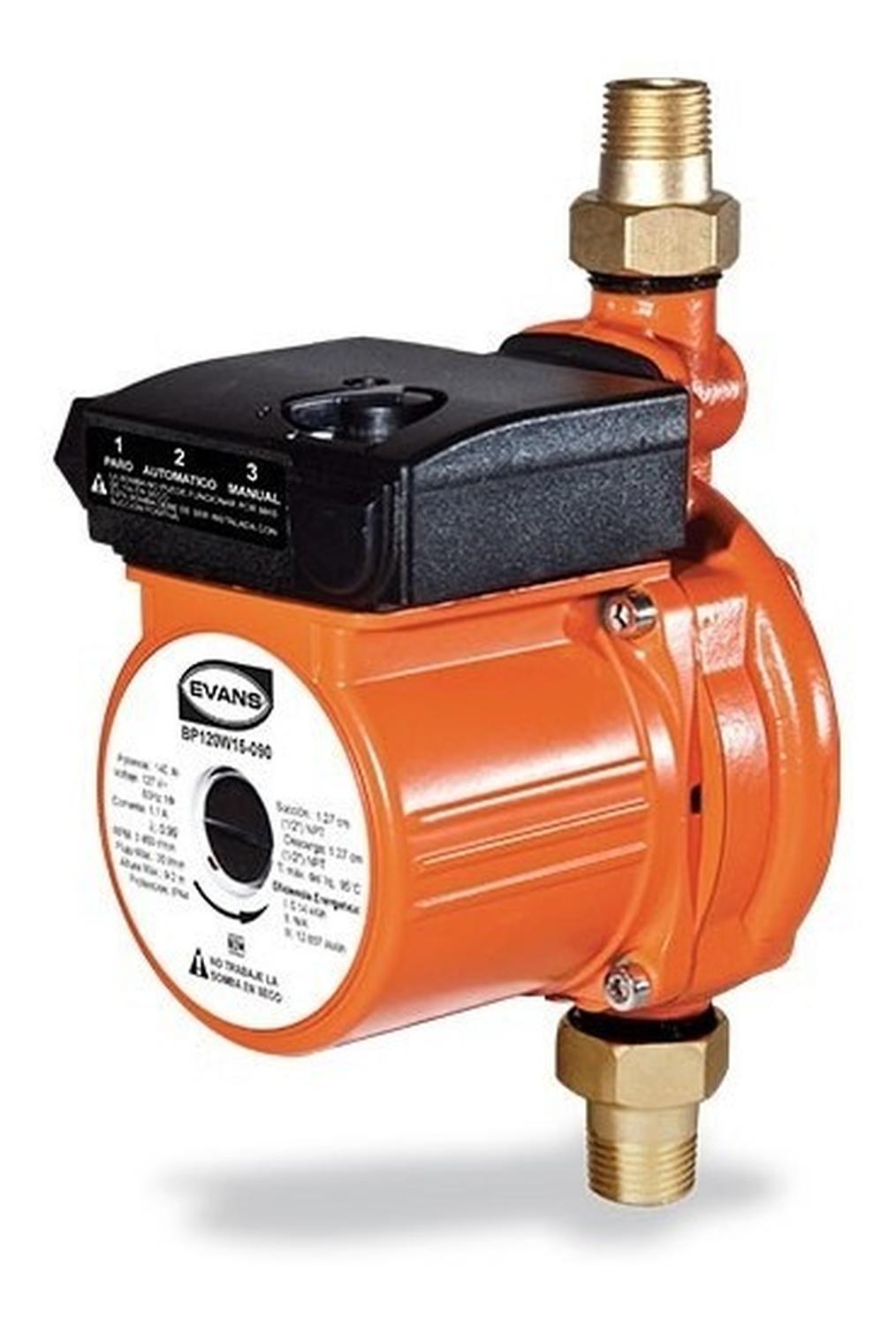

Evans BP120W15-090 Pressure Booster Pump – 1 Service
Powerful and compact 0.20 HP pressure booster pump, ideal for improving water pressure in showers, water heaters, washing machines and dishwashers. Its operation can be manual or automatic, and it stands out for its low electrical consumption and silent operation.

MAIN BENEFITS
Low energy consumption.
Automatic or manual operation.
Continuous work (duty cycle specified in the manual).
Silent system.
Economical solution for homes with low pressure.

RECOMMENDED APPLICATIONS
Pressurization of up to 2 services.

Ideal for domestic installations:
-Gas water heaters
-Showers
-Washing machines
-Dishwashers

PUMP SPECIFICATIONS
Type: Centrifugal, 1 stage
Optimal flow: 16 L/min
Optimal head: 6 m
Maximum water temperature: 95 °C
Suction and discharge diameter: ½”
Impeller type: Closed

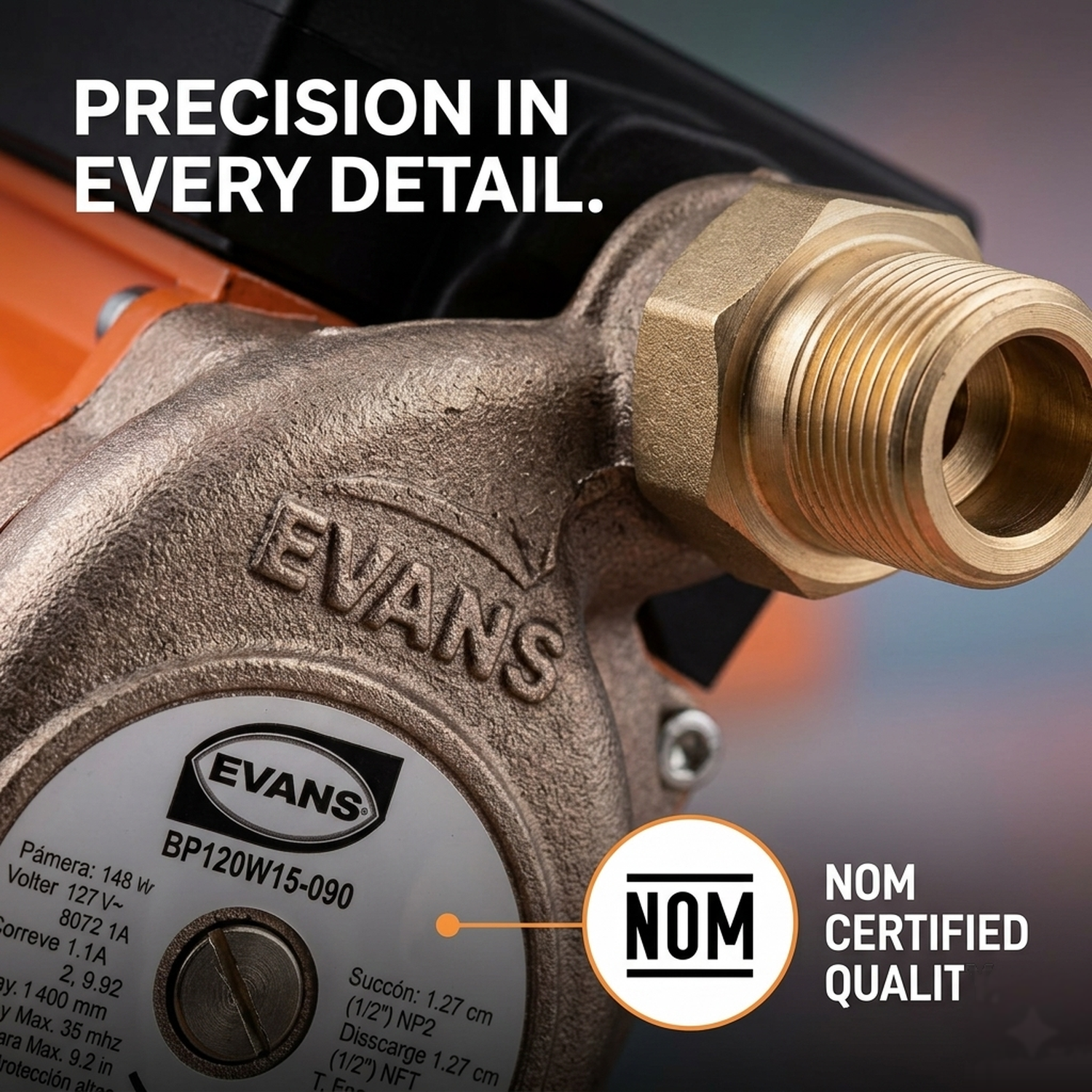

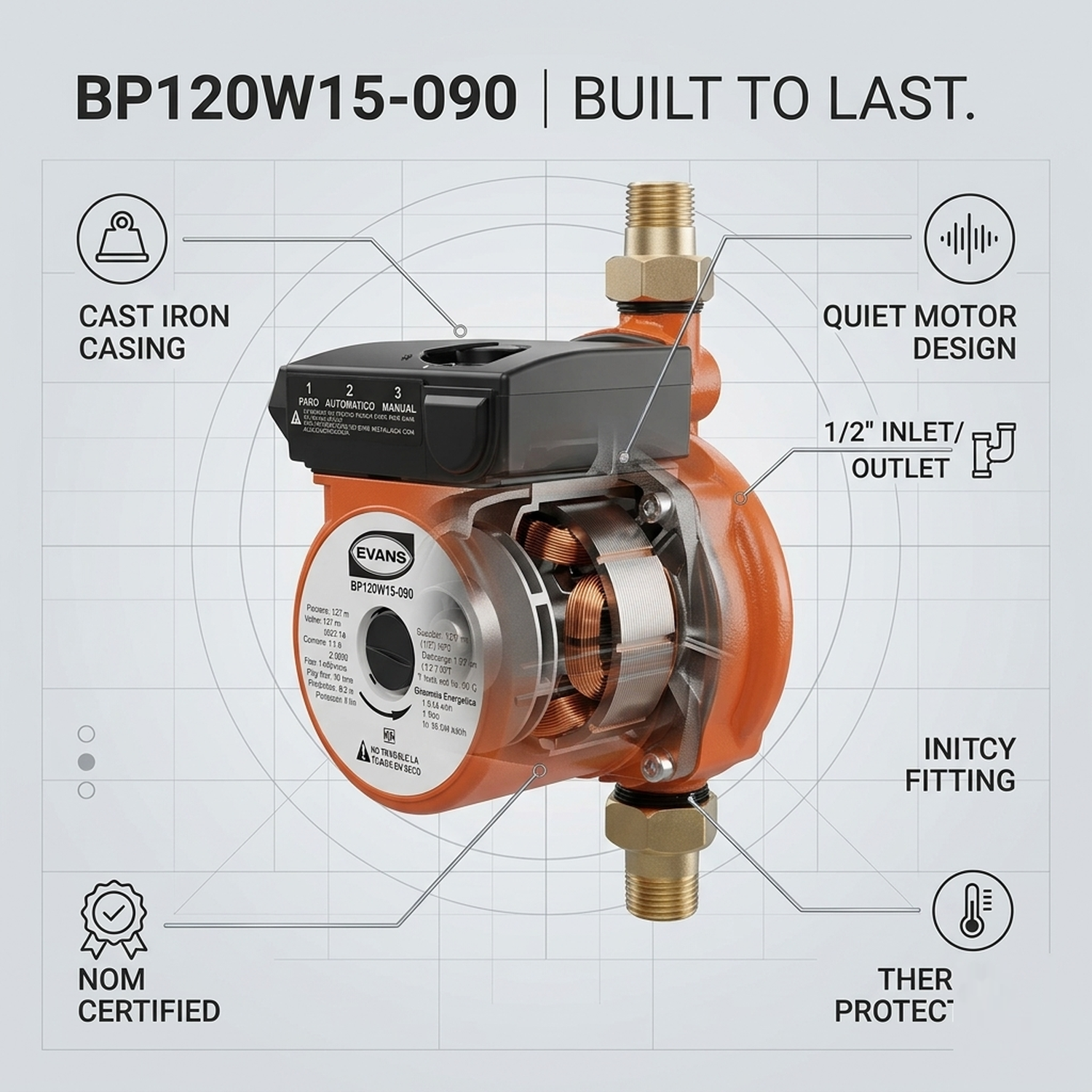

Body material: Cast iron
Impeller material: Polypropylene

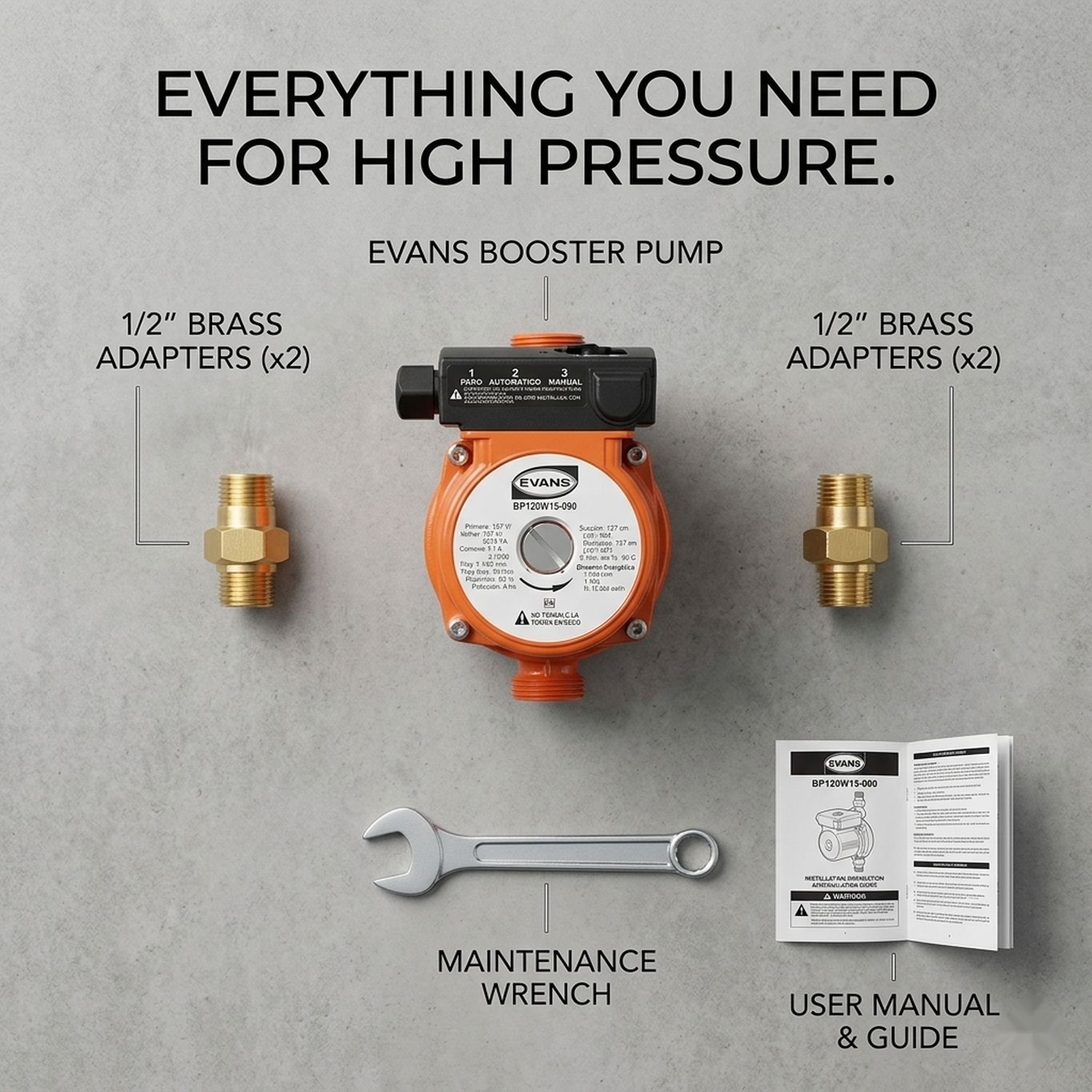

Includes: Maintenance wrench and male adapters

MOTOR SPECIFICATIONS
Power: 0.20 HP
RPM: 3450
Type: Single-phase electric
Voltage: 127 V
Current: 1.1 A

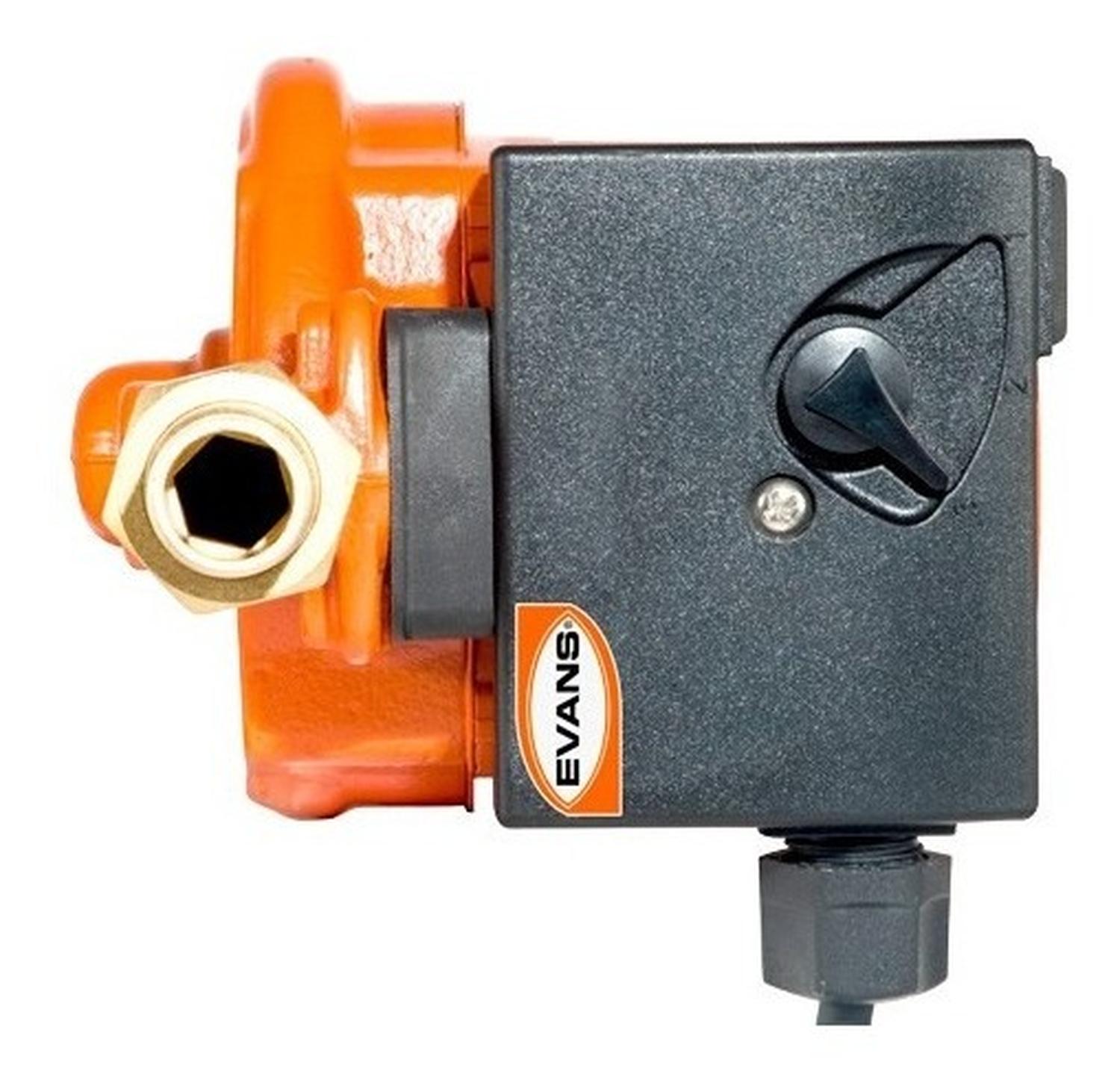

Start-up: Manual / Automatic
Thermal protection: Yes
Power cable: 1.15 m

ADDITIONAL INFORMATION
Model: BP120W15-090
Condition: New
Certification: NOM
Warranty: 12 months against manufacturing defects

• Model: BP120W15-090


• Warranty months: 12


• Warranty: AGAINST MANUFACTURING DEFECT


• Condition: New
