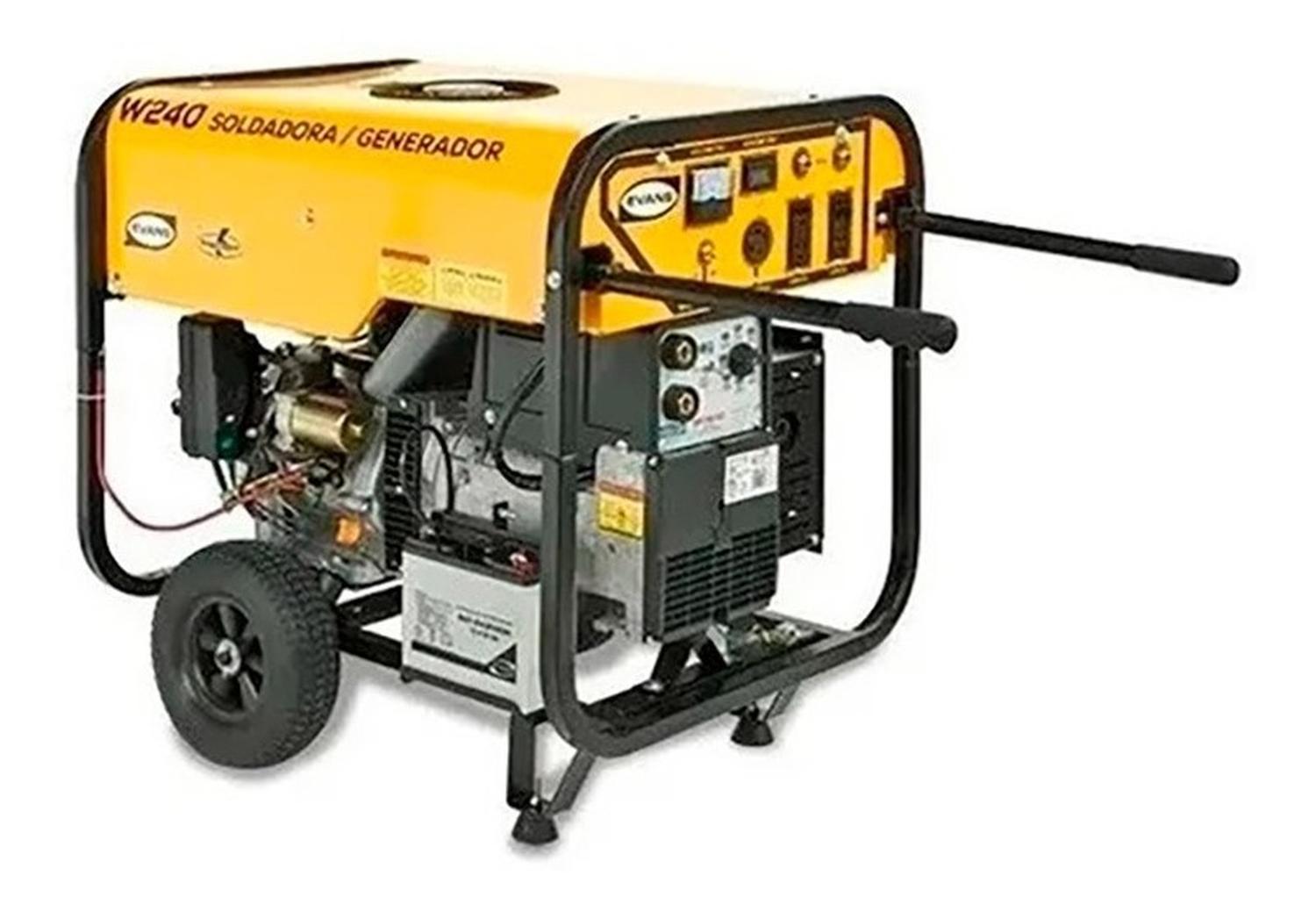

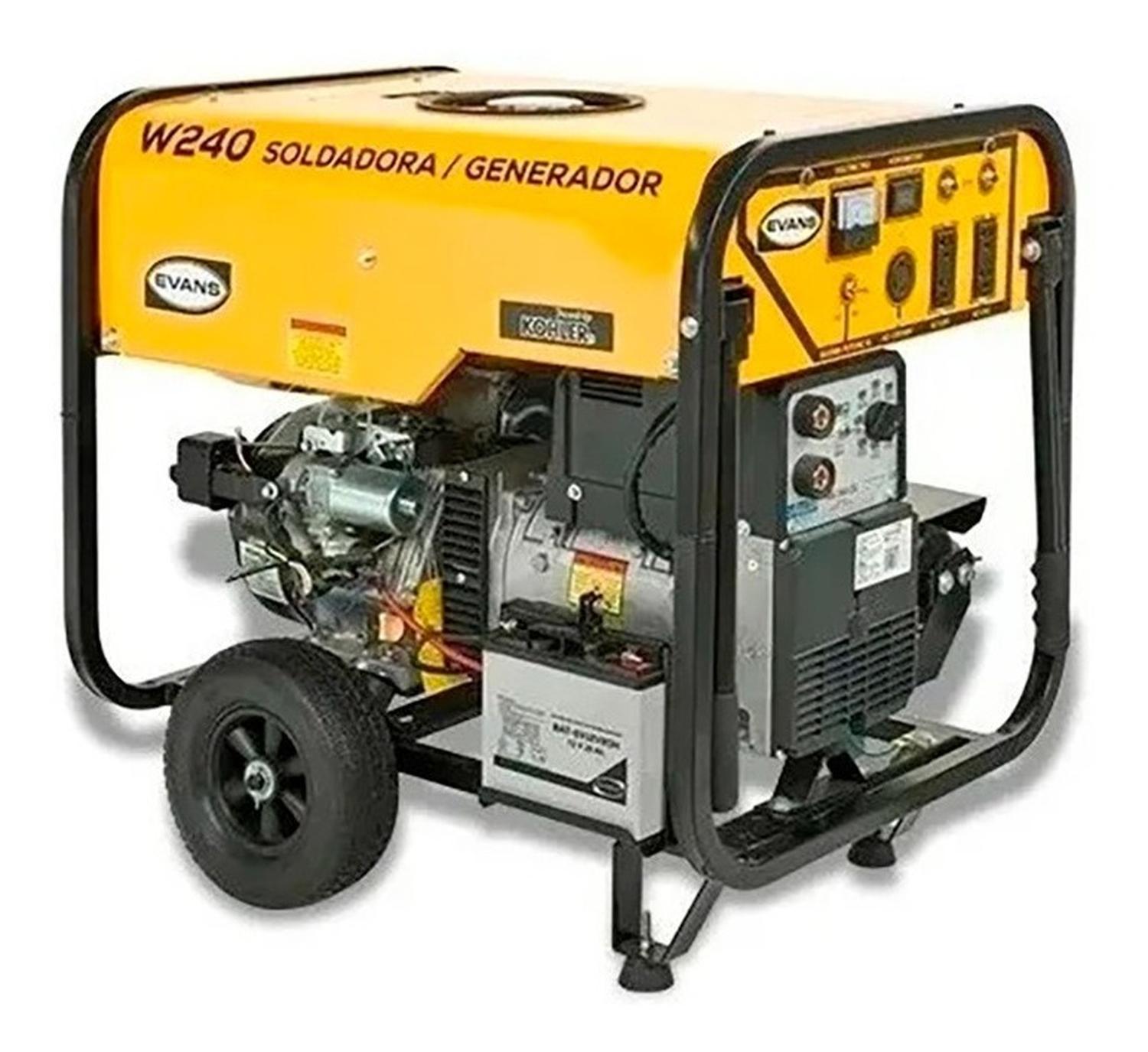

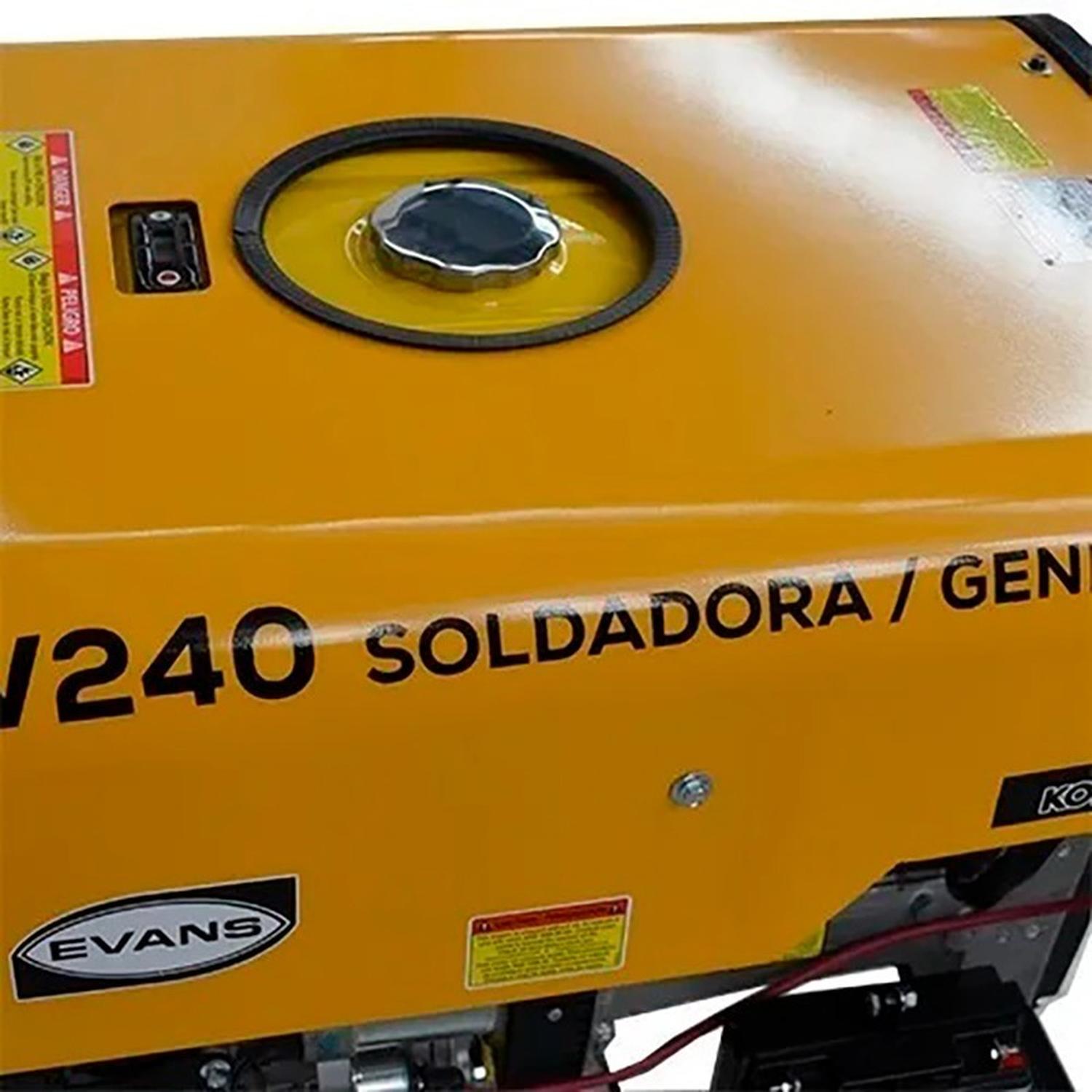

Planta de Luz y Soldadora 240A 7.5kVA 14HP a Gasolina Evans

ENGINE
Engine Brand: Kohler®
Engine Power: 14.00 HP
Displacement: 429.00 cc
Ignition: Electric
Engine Type: Gasoline
Engine Strokes: 4.00 Strokes
Engine Speed: 3600.00 RPM
Voltage: 120 / 240 V
Phases: Single Phase
Maximum Current: 240.00 A
Fuel Tank Capacity: 30.00 L
Recommended Oil: SAE-30 (Sold separately code AMG-SAE30-L)
Service Life at 80% Power: 4000 hours
Low Oil Sensor: Included
Operating Time at 50% Load: 8 hours

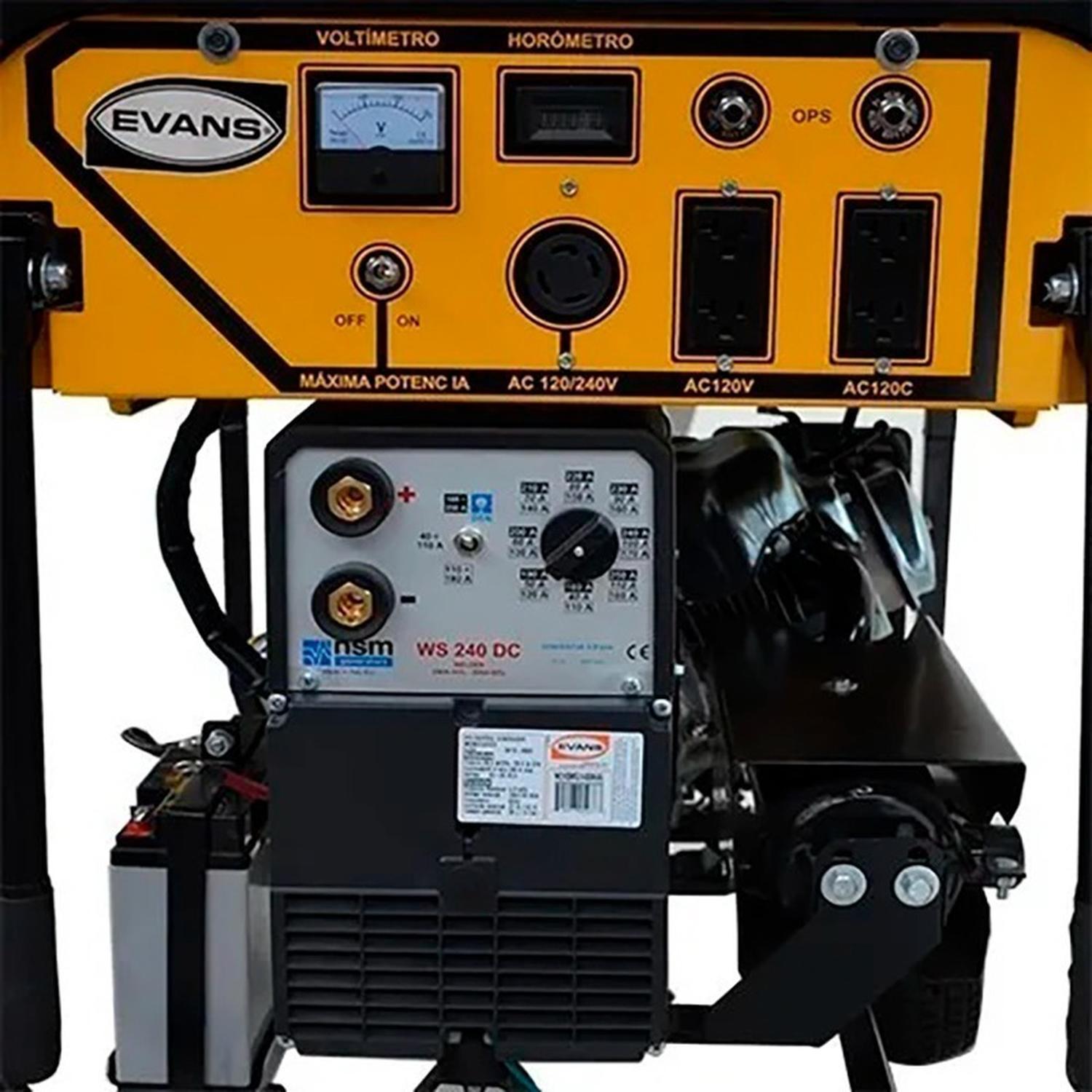

GENERATOR
Output Voltage: 120 / 240 V
Output Amperage: 42 / 21 A
Alternator: 5.00 kVA
Frequency: 60.00 Hz
Phases: Single Phase
Panel: Manual

WELDING
Maximum Welding Current: 240.00 A
Cycle with 3/32 inch 6013: 75.00 cycles
Cycle with 1/8 inch 6013: 70.00 cycles
Cycle with 5/32 inch 6013: 60.00 cycles
Cycle with 1/8 inch 7018: 70.00 cycles
Cycle with 5/32 inch 7018: 60.00 cycles
Cycle with 3/16 inch 7018: 35.00 cycles
Voltage Range/DC Voltage: 65-85 V
Amperage Range/DC Capacity: 40-240 A
Normal Protection: IP23
Power Source: Gasoline V
Input Voltage: 120 / 240 V
Input Phases: Single phase
Amperage Consumption/Maximum Consumption: 42 / 21 A
Minimum Material Thickness to Weld: 0.05 Gauge
Maximum Material Thickness to Weld: 0.50 Gauge
Portability: Portable

ADDITIONAL INFORMATION
Includes: Set of Banana Connectors (DINSE)30140013

Dimensions: 78.00 X 65.00 X 81.00 cm

• Model: W240MG1400KAE


• Months of : 6


• Condition: New
