WELDING
Maximum welding current: 200.00 A
Duty cycle with 3/32 inch 6013: 90.00 cycles
Duty cycle with 1/8 inch 6013: 90.00 cycles
Duty cycle with 5/32 inch 6013: 80.00 cycles
Duty cycle with 1/8 inch 7018: 80.00 cycles
Duty cycle with 5/32 inch 7018: 45.00 cycles
Voltage range/DC Voltage: 24-29 V
Amperage range/DC Capacity: 20-200 A
Normal protection: IP23
Power supply: 220 V 2 wires V
Input voltage: 220 V V
Input phases: 220 V 2 wires
Amperage consumption/Maximum consumption: 25.00 A
Minimum material thickness to be welded: 18.00 Gauge
Maximum material thickness to be welded: 12.70 Gauge
Maximum electrode 6013: 5/32" (90 Cycles)
Maximum electrode 7018: 1/8" (80 Cycles)

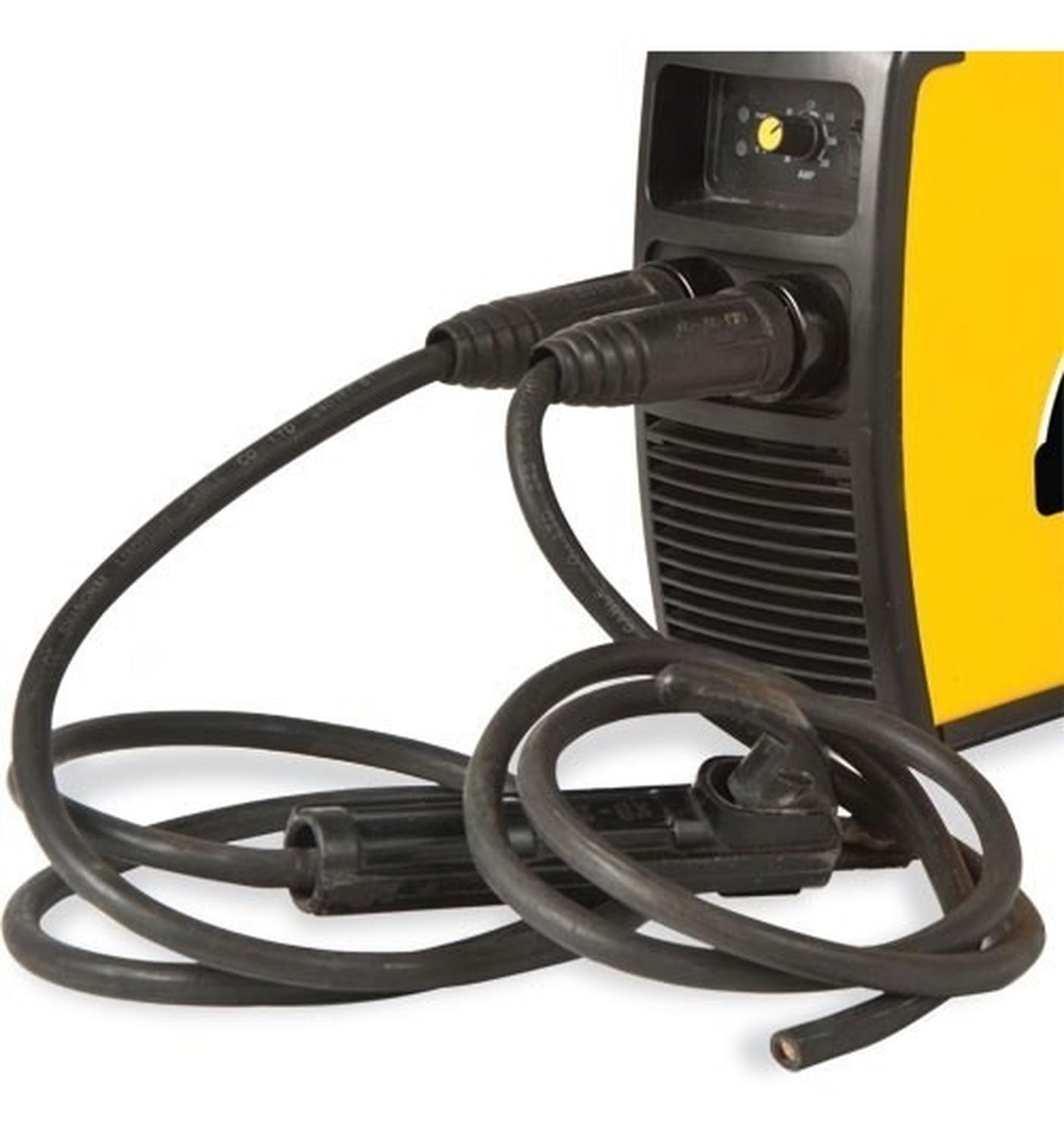

Electrode cable: #2
Welds: From #22 sheet metal to 5/8 plate
TIG welding (with argon): Optional with the purchase of RSD-250A (Sold separately)

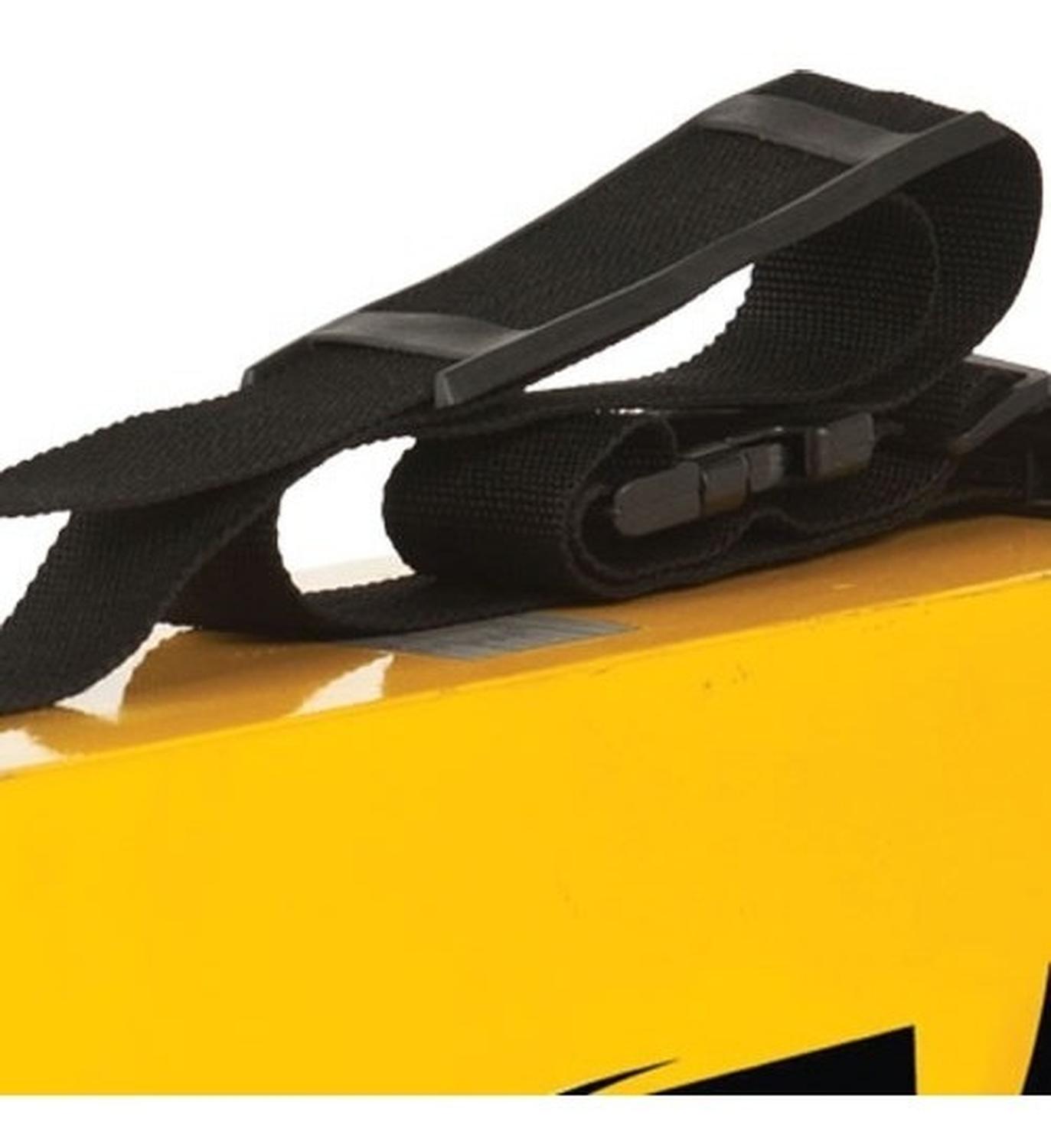

Portability: Portable
ADDITIONAL INFORMATION
Assembly warranty: 12 months
Packaging Dimensions: 19.00 X 33.00 X 28.00 cm
Weight: 9.00 kg
- Model: D250A220V
- Months of : 12
- : AGAINST MANUFACTURING DEFECT
- Condition: New
